FixPt Sign
Indicate the sign of the input.
Description
The FixPt Sign block is a masked S-function that indicates the sign of the input.
The output is a signed data type with the same number of bits as the input, and with nominal scaling (a slope of one and a bias of zero):
- The output is 1 when the input is greater than zero.
- The output is 0 when the input is equal to zero.
- The output is -1 when the input is less than zero.

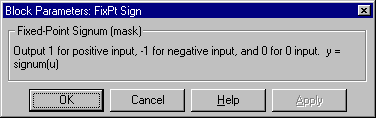

Dialog Box Parameters
Characteristics
| Characteristic | Description |
|---|---|
| Input Port | Any data type supported by the blockset |
| Output Port | A signed Fixed-Point Blockset data type |
| Direct Feedthrough | Yes |
| Sample Time | Inherited |
| Scalar Expansion | N/A |
| States | 0 |
| Vectorized | Yes |
