FixPt Saturation
Bound the range of the input.
Description
The FixPt Saturation block is a masked S-function that limits the input signal to upper and lower saturation values.
You specify the upper bound of the input and the lower bound of the input. If the input signal is outside these limits, the output saturates to one of the bounds.

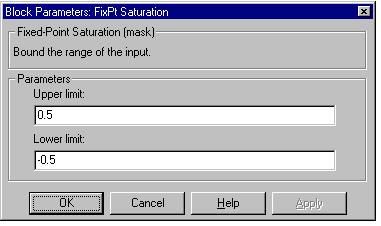

Dialog Box Parameters
- Upper limit - The upper bound on the input signal.
- Lower limit - The lower bound on the input signal.
Characteristics
| Characteristic | Description |
|---|---|
| Input Port | Any data type supported by the blockset |
| Output Port | Same as input data type |
| Direct Feedthrough | Yes |
| Sample Time | Inherited |
| Scalar Expansion | Of input and limits |
| States | 0 |
| Vectorized | Yes |
