FixPt Logical Operator
Perform the specified logical operation on the inputs.
Description
The FixPt Logical Operation block is a masked S-function that performs the specified logical operation on its inputs. An input value is TRUE (1) if it is nonzero and FALSE (0) if it is zero.
You select the Boolean operation connecting the inputs with the Operator parameter list. The supported operations are given below.
| Operation | Description |
|---|---|
| AND | TRUE if all inputs are TRUE |
| OR | TRUE if at least one input is TRUE |
| NAND | TRUE if at least one input is FALSE |
| NOR | TRUE when no inputs are TRUE |
| XOR | TRUE if an odd number of inputs are TRUE |
| NOT | TRUE if the input is FALSE |
The size of the output depends on the number of inputs, their vector size, and the operator:
- The NOT operator accepts only one input, which can be a scalar or a vector. If the input is a vector, the output is a vector of the same size containing the logical complements of the input vector elements.
- For a single vector input, the block applies the operation (except the NOT operator) to all elements of the vector. The output is always a scalar.
- For two or more inputs, the block performs the operation between all of the inputs. If the inputs are vectors, the operation is performed between corresponding elements of the vectors to produce a vector output.
When configured as a multi-input XOR gate, this block performs an addition- modulo-two operation as mandated by the IEEE Standard for Logic Elements.

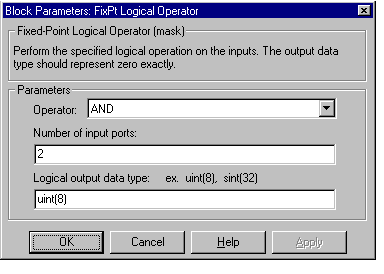

Dialog Box Parameters
- Operator - Logical operator used to connect the inputs.
- Number of input ports - Number of inputs.
- Logical output data type - Output data type. You should only use data types that represent zero exactly such as signed and unsigned integers, and any floating-point data type
Characteristics
| Characteristic | Description |
|---|---|
| Input Port | Any data type supported by the blockset |
| Output Port | Any data type supported by the blockset that can exactly represent zero |
| Direct Feedthrough | Yes |
| Sample Time | Inherited |
| Scalar Expansion | Of inputs |
| States | 0 |
| Vectorized | Yes |
