FixPt Integer Delay
Delay a signal N sample periods.
Description
The FixPt Integer Delay block delays its input by N sample periods. The block accepts one input and generates one output, both of which can be scalar or vector. If the input is a vector, all elements of the vector are delayed by the same sample period.

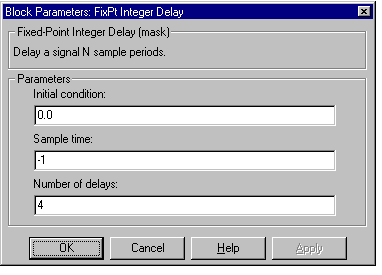

Dialog Box Parameters
- Initial condition - The initial output of the simulation. This output is converted from a double to the input data type offline using round-to-nearest and saturation.
- Sample time - Sample time.
- Number of delays - The number of periods to delay the input signal.
Characteristics
| Characteristic | Description |
|---|---|
| Input Port | Any data type supported by the blockset |
| Output Port | Same as the input |
| Direct Feedthrough | No |
| Sample Time | Discrete or continuous |
| Scalar Expansion | Of input or initial conditions |
| States | As many as there are outputs multiplied by the number of delays |
| Vectorized | Yes |
