FixPt Dot Product
Generate the dot product.
Description
The FixPt Dot Product block is a masked S-function that generates the dot product of its two input vectors. The scalar output, y, is equal to the MATLAB operation
y = sum(conj(u1).* u2)
where u1 and u2 represent the inputs. If both inputs are vectors, they must be the same length.

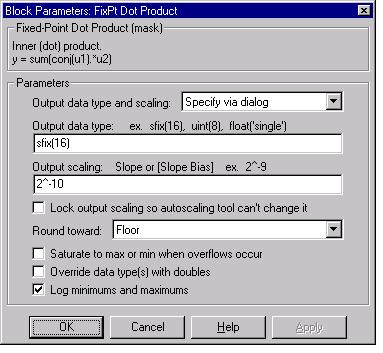

Dialog Box Parameters
- Output data type and scaling - Specify the output data type and scaling via the dialog box, or inherit the data type and scaling from the driving block or by back propagation.
- Output data type - Any data type supported by the Fixed-Point Blockset.
- Output scaling - Radix point-only or slope/bias scaling. These scaling modes are available only for generalized fixed-point data types.
- Lock output scaling so autoscaling tool can't change it - If checked, the output scaling is locked. This feature is available only for generalized fixed-point output.
- Round toward - Rounding mode for the fixed-point output.
- Saturate to max or min when overflows occur - If checked, fixed-point overflows saturate. Otherwise, they wrap.
- Override data type(s) with doubles - If checked, the output data type is overridden with doubles.
- Log minimums and maximums - If checked, minimum and maximum simulation values are logged to the workspace.
Characteristics
| Characteristic | Description |
|---|---|
| Input Port | Any data type supported by the blockset |
| Output Port | Any data type supported by the blockset |
| Direct Feedthrough | Yes |
| Sample Time | Inherited |
| Scalar Expansion | Yes |
| States | 0 |
| Vectorized | Yes |
